TYPE: Autoclaves
MANUFACTURE: Midmark
MODEL: M11
DIMENSIONS: 17” X 18” X 22”
WEIGHT: 96 LBS

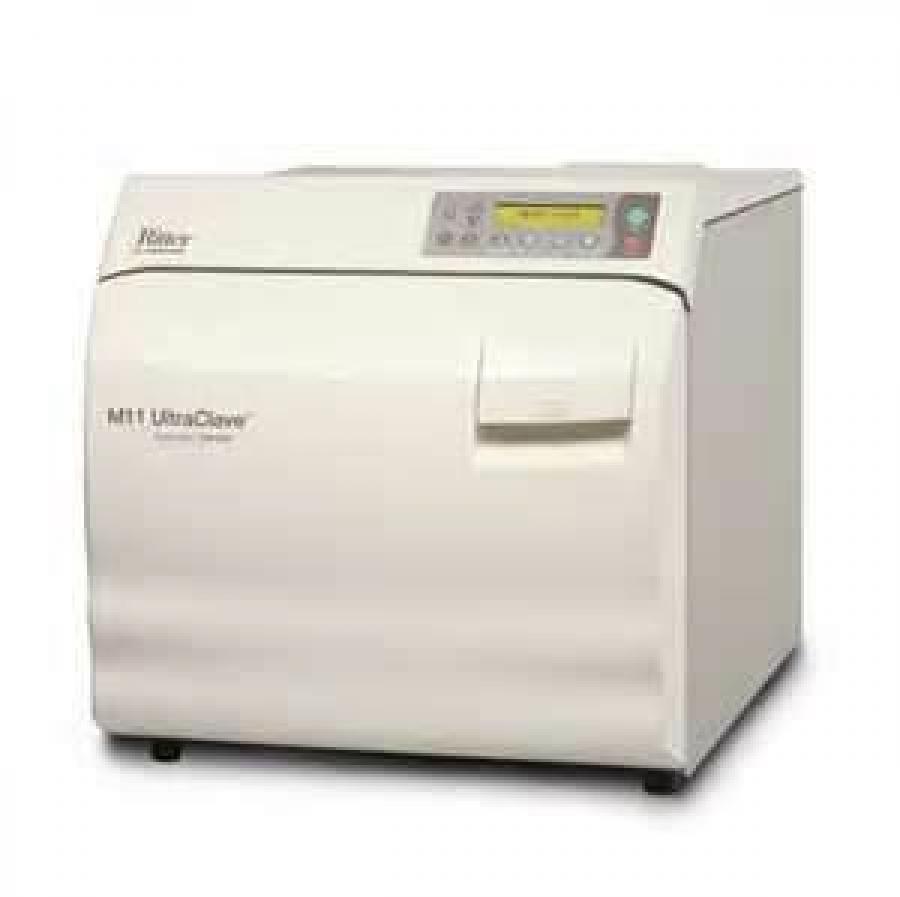

Midmark M11 is a fully-automated, microprocessor-controlled sterilizer with an 11-inch, round, stainless-steel chamber.
The exterior dimensions of the sterilizer are 17 inches high by 18 inches wide by 22 inches deep (handle included) or 22¾ inches deep (with power cord connector).
Chamber size: 11" (27.9 cm) Dia x 18" (45.7 cm) D, 6.5 gal. usable volume (24.6 liters)
The system operates at 110/120 volts ± 5 %, 50/60 Hz, with a loading of 1.4kW.
The unit is also available as 220/240 volts ± 5%, 50/60 Hz, with a loading of 1.5kW.
The sterilizer can be configured for plug-in or hard- wired connection and requires a 20- ampere circuit breaker.
96lbs. (43.5.kg) Shipping Weight: 128 lbs. (58.1 kg)
Water reservoir 1.25 gal. (4.7 liters)
One large - 15" L x 9.12" W x 1.12" D (308.1 x 23.2 x 2.9 cm) One small - 15" L x 6.62" W x 1.12" D (38.1 x 16.8 x 2.9 cm
Trays: Two large - 15" L x 9.12" W x 1.12" D (308.1 x 23.2 x 2.9 cm) Two small - 15" L x 6.62" W x 1.12" D (38.1 x 16.8 x 2.9 cm)
