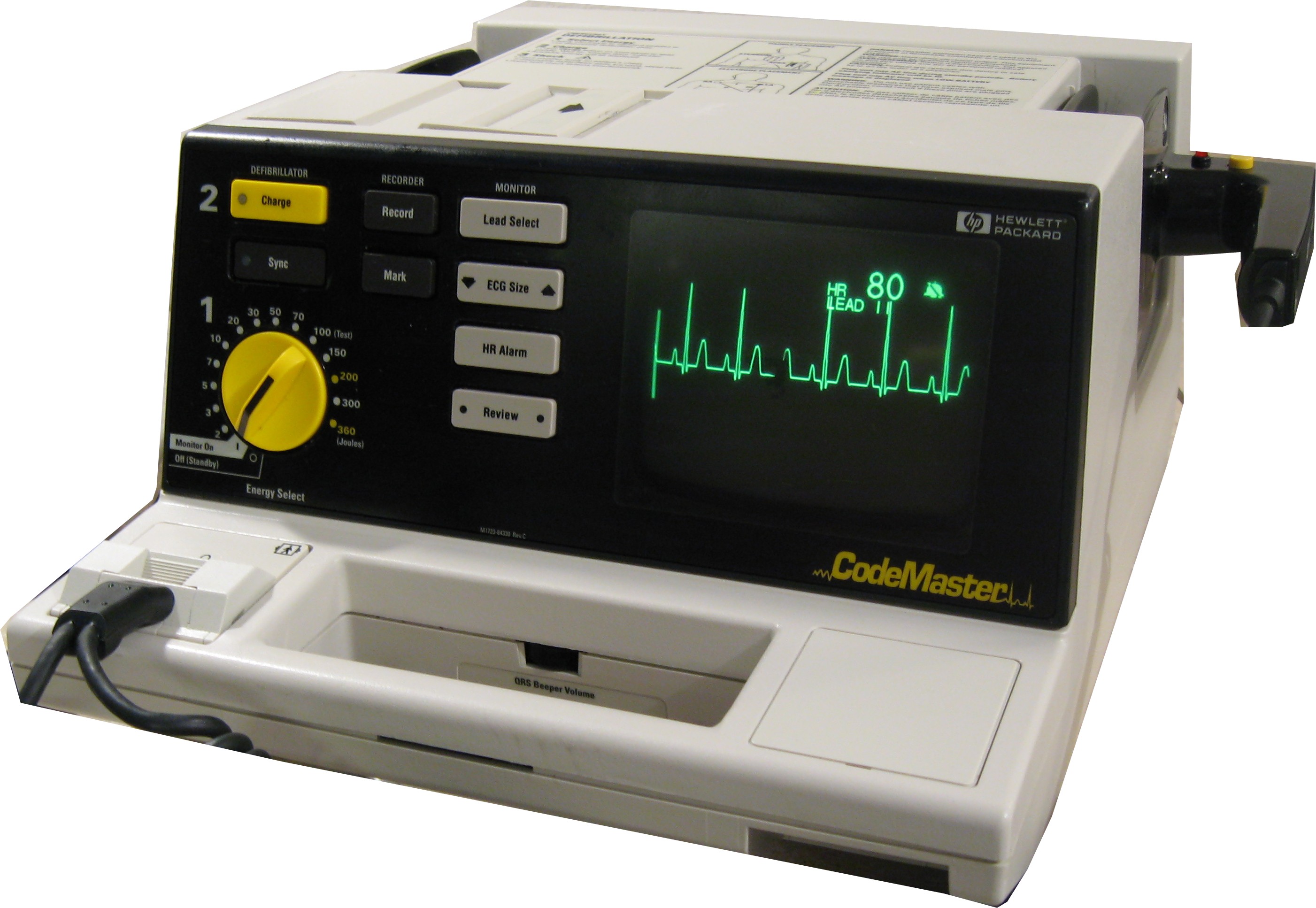

Hewlett Packard Codemaster

SPECIFICATIONS •Dimensions 7.9"H x 11.8"W x 15.6"L •Weight: 24 lbs. AC input: 100 to 230 VAC +/- 15%, 50/60 Hz. Battery Indicators: Illuminated LED indicates battery is charging. Low Battery message appears on the monitor. •Defibrillator Waveform: damped sinusoidal. Output energy (delivered): 2,3,5,7,10,20,30,50,70,100,150,200,300, and 360 joules. Charge control: push-button on apex paddle and on front panel. Charge time: less than 5 seconds to 360 joules with a functional battery installed. Charge done indicator: display indicates available energy, charge-done light on apex paddle, charge done tone. Synchronizer: SYNC message appears on the monitor and is annoted periodically on the recorder while in synchronous mode. An audible beep sounds with each detected R-wave, while a marker on the monitor and sync mark on the recorder strip indicate the discharge point. Paddles: standard paddles are anterior / anterior. Adult electrodes (83 cm sq) slide off to expose pediatric electrodes (21 cm sq). Paddle cord is 10 feet (3m). Full range of internal paddles are available. •Monitor Input: ECG activity may be viewed through the paddles or patient cable. Lead fault: LEADS OFF message and dashed baseline appear on the monitor if a lead becomes disconnected. Common mode rejection: greater than 100dB measured as per AAMI standards for cardiac monitors. Heart rate display: digital read out on monitor from 20 to 280 bpm. •Recorder Annotations: time, date, heart rate, event markers, ECG mode, and selected energy. Recorder Mode: automatically documents events and ECG during defibrillation episodes. The recorder can be configured to run in either real time or with a 6-second delay. Frequency response: .5 to 40Hz monitor bandwidth. .05 to 150 Hz diagnostic bandwidth is selectable. OPTIONAL •SPO2 - Pulse Oximetry •Pacing •Advisory Mode •External electrode adapters.
